Hinge Type — SA

SA Hinge Type Semi-Automatic

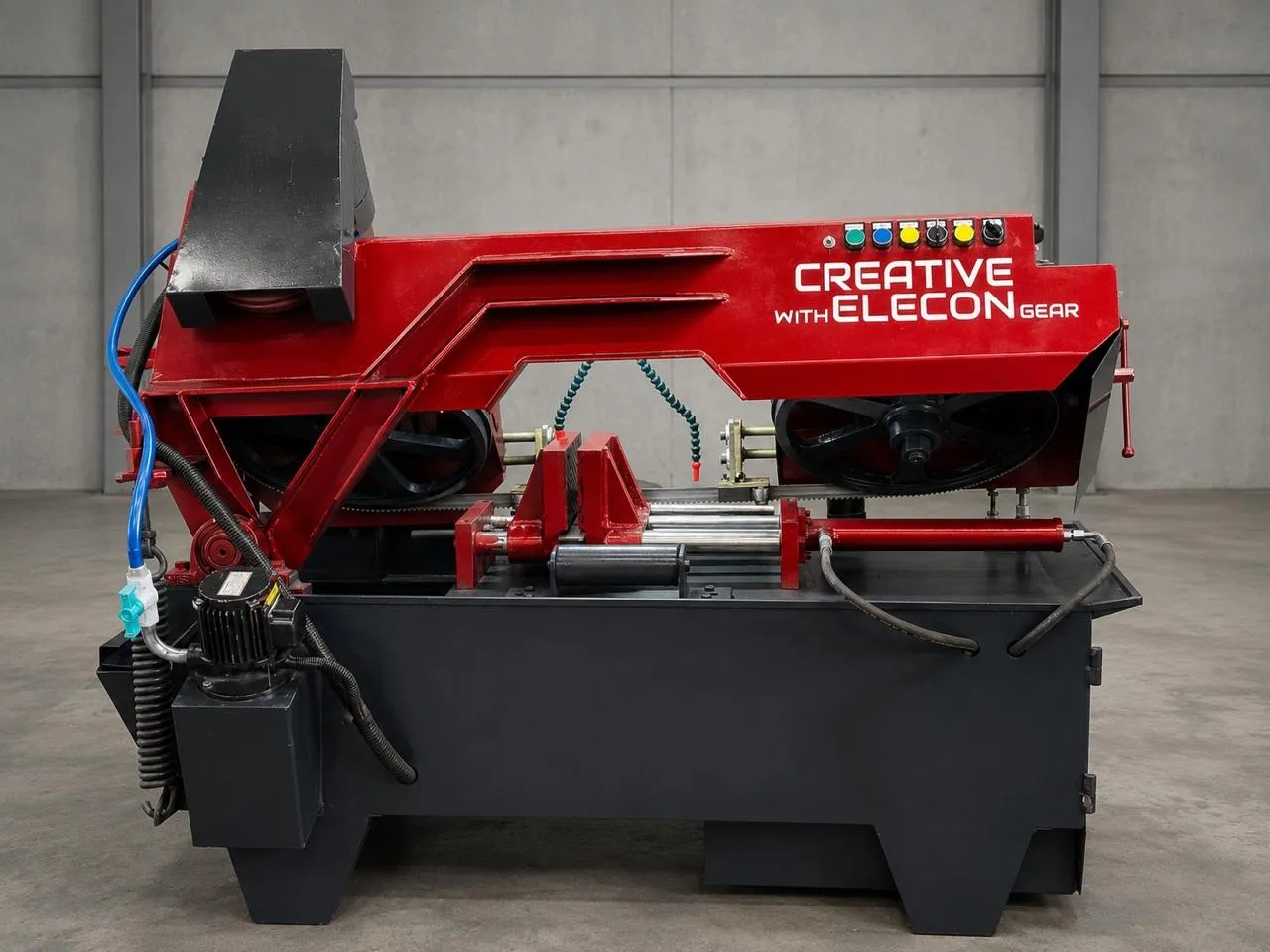

Name: SA Hinge Type Semi-Automatic
Brand: Creative Engineers
SKU: CE-BS-SA

Hydraulic lift and hydraulic vice on the same hinge frame.

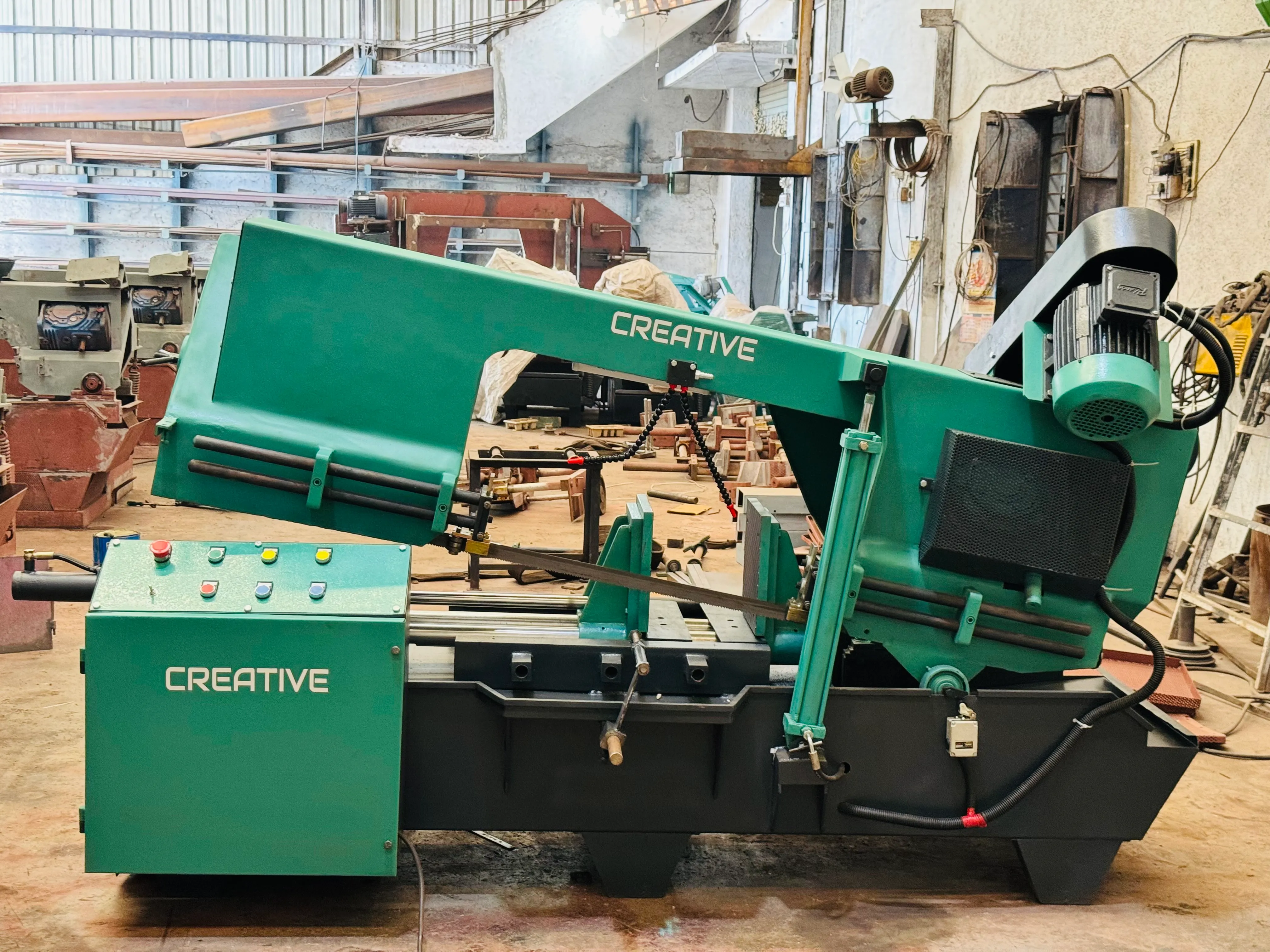

SA Hinge Type Semi-Automatic, view 1 of 3

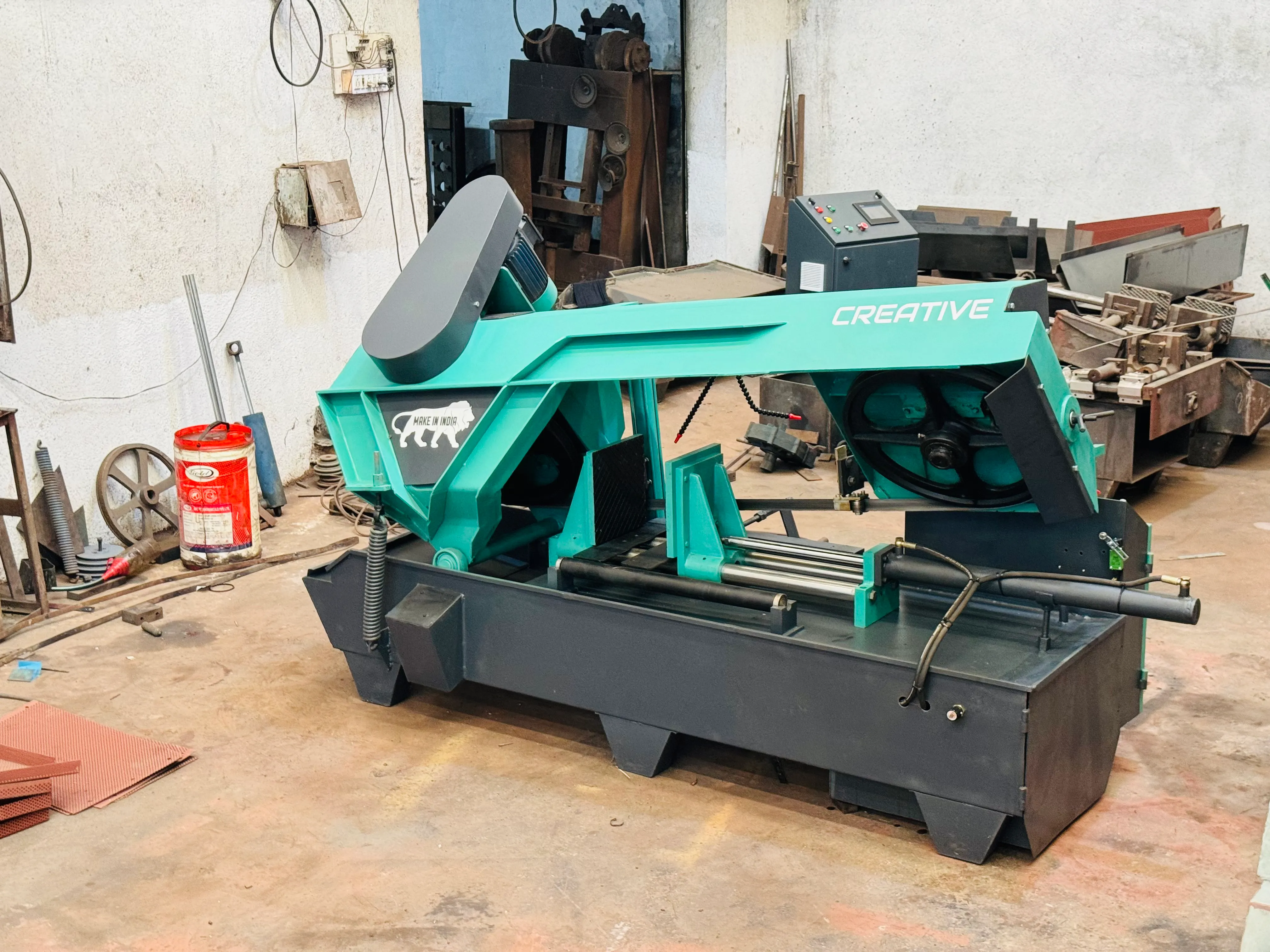

SA Hinge Type Semi-Automatic, view 2 of 3

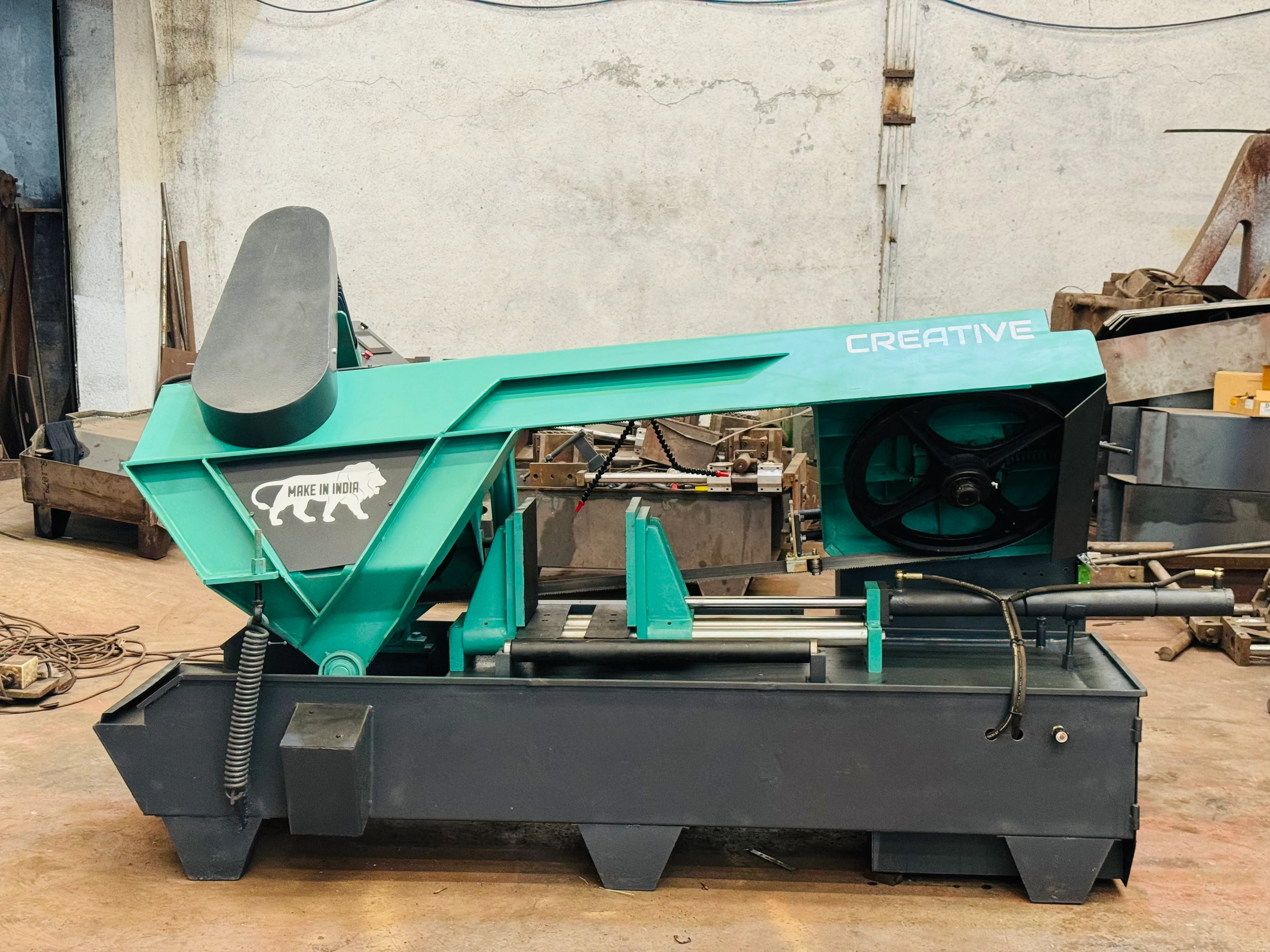

SA Hinge Type Semi-Automatic, view 3 of 3

1/3

Capacity: 200 to 400x600 mm
Automation: Semi-automatic
Lead time: 4 weeks from confirmed order

Cutting capacity

4 built

The largest round bar the frame will take. Square and rectangular stock cut to the same figure.

200 mm Dia 200 mm round, 200 x 200 mm section 250 mm Dia 250 mm round, 250 x 250 mm section 350 mm Dia 350 mm round, 350 x 350 mm section 400x600 mm Dia 400x600 mm round, 400x600 x 400x600 mm section

Accessories

Optional

Tick what you need and it goes on the quote. These are quoted by the workshop against your spec and carry no discount.

Variable frequency drive Stepless blade speed instead of fixed pulley steps. Bar stand / roller table Infeed support for long stock. Length to suit your bay. Spare blade set Welded to your machine loop length. Grade and pitch to your material. Electric motor Not covered by the list price. Specify voltage and phase. Seaworthy packing Export crating and forwarding. Not covered by the list price.

Your machine

Model code

CE-BS-SA-350

350 mm , Semi-automatic

No accessories selected

Quantity

Quoted ex-works Rajkot. Electric motor, packing and forwarding, and GST are extra.

Ask a question

In the quote

Hinge frame and bow
Hydraulic power pack
Hydraulic clamping vice
Coolant system
Commissioning support

Charged separately

Electric motor
Seaworthy packing and forwarding
GST
Extra accessories

Lead time

4 weeks from confirmed order

About the SA

The SH frame with the two jobs an operator repeats all day taken off them: the bow lifts hydraulically and the vice clamps hydraulically. Loading stays manual, so it suits mixed work rather than one long run.

Specification

Frame Hinge type

Lifting Hydraulic, automatic

Clamping vice Hydraulic

Feeding Operator fed

Round capacity Dia 350 mm

Section capacity 350 x 350 mm
