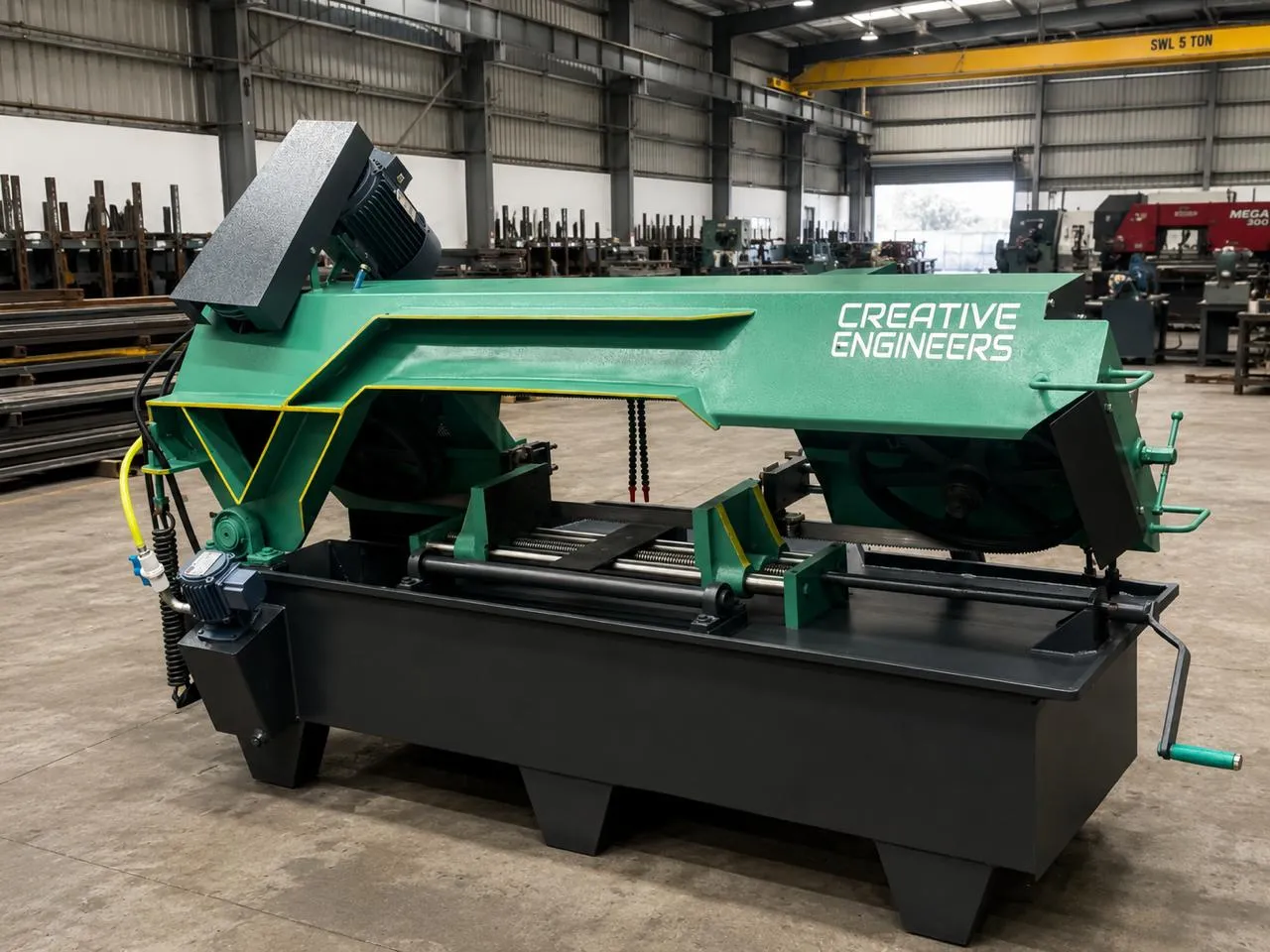

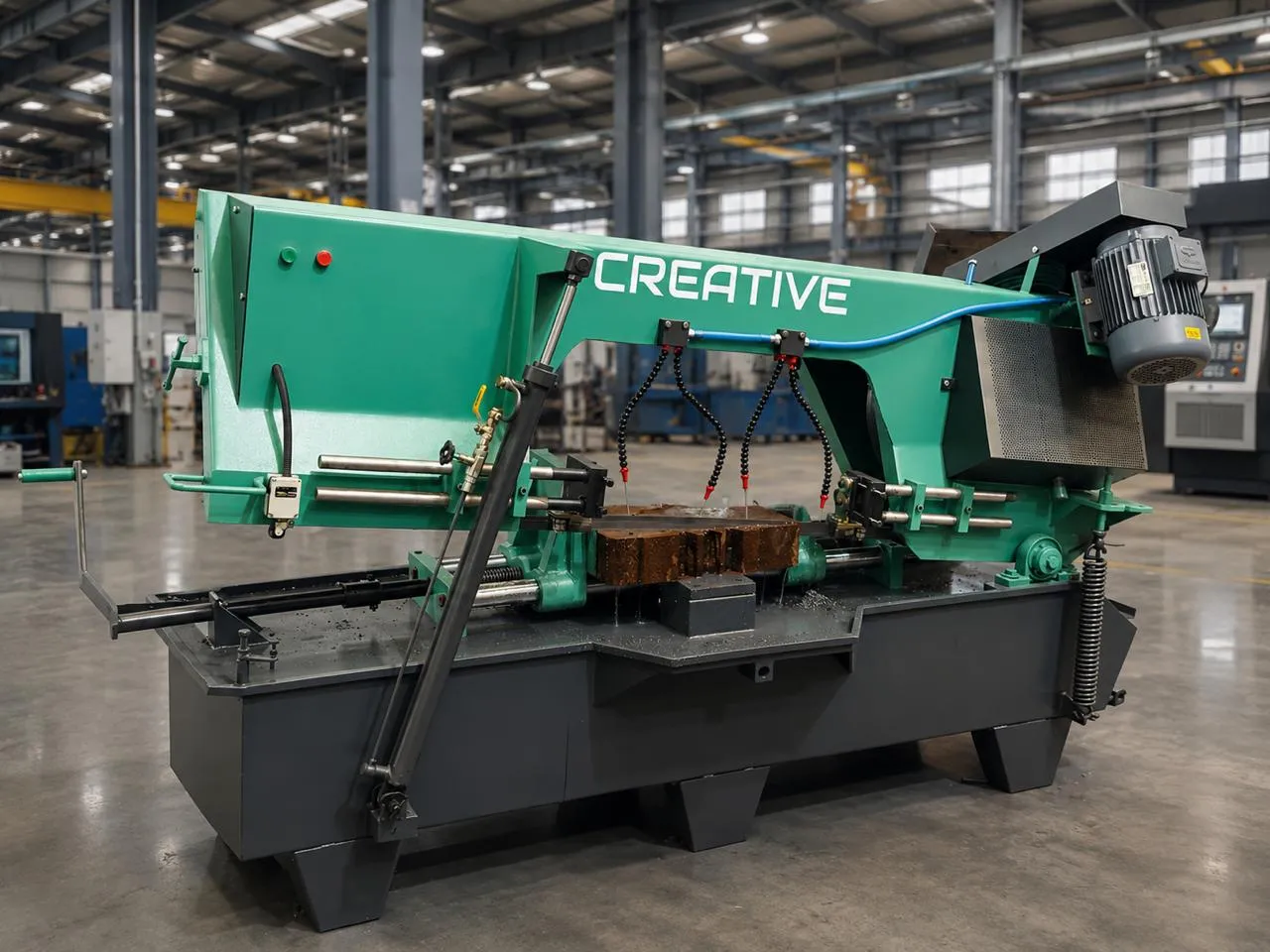

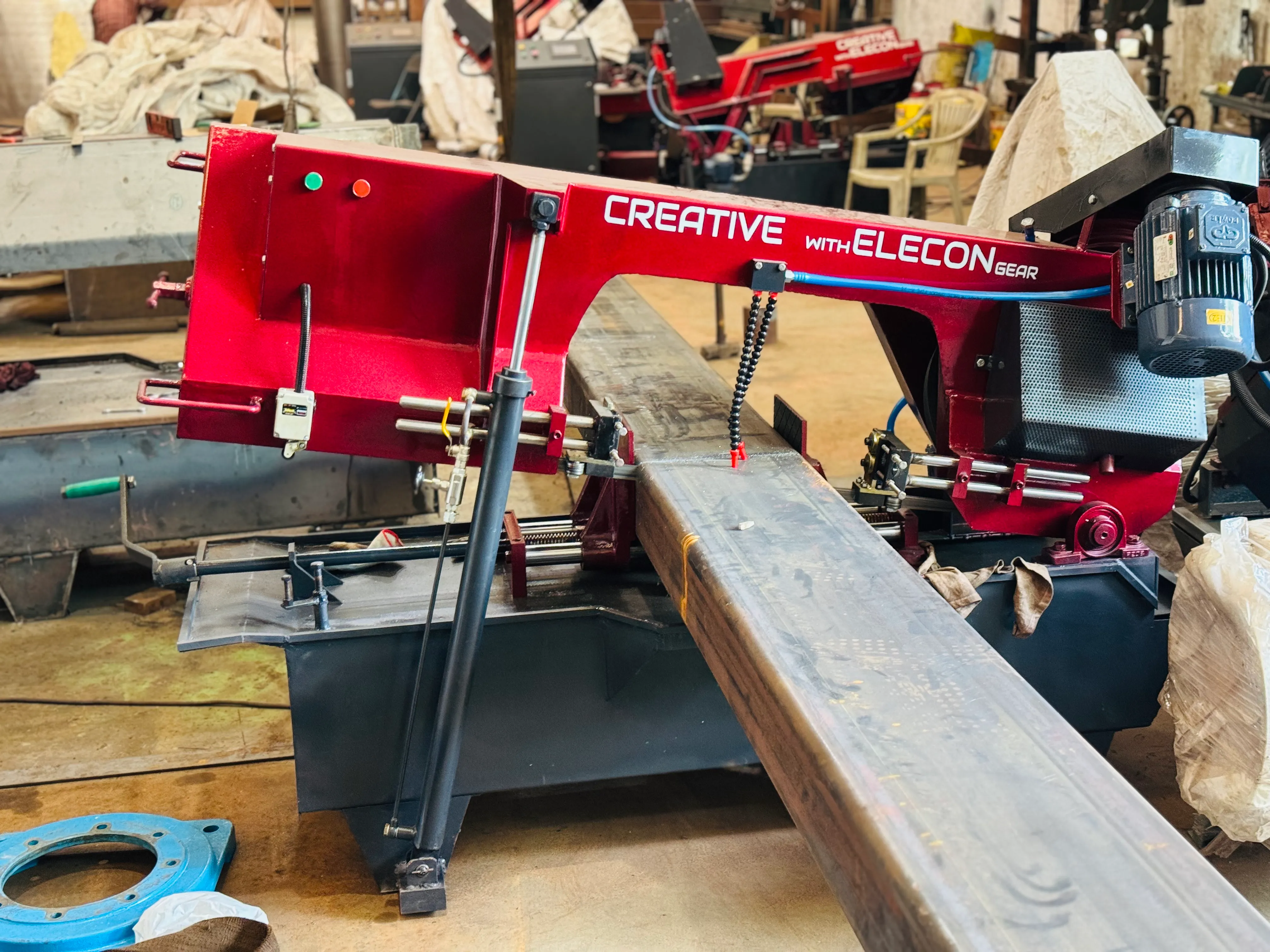

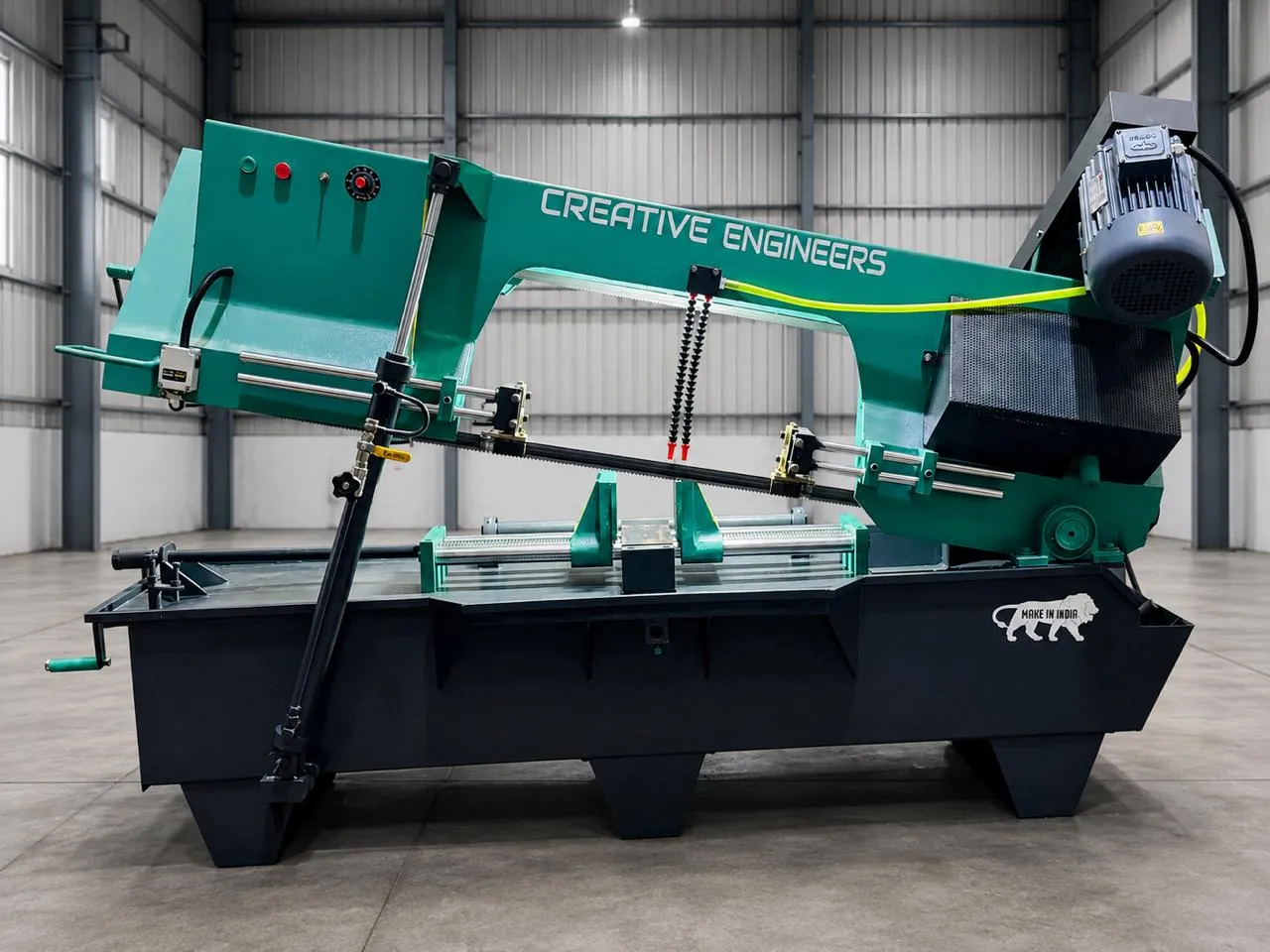

Hinge Type — SH

SH Hinge Type Manual

Name: SH Hinge Type Manual
Brand: Creative Engineers
SKU: CE-BS-SH

The entry bandsaw. Lift and clamp by hand.

1/4

Capacity: 200 to 450 mm
Automation: Manual
Lead time: 3 to 4 weeks from confirmed order

Cutting capacity

4 built

The largest round bar the frame will take. Square and rectangular stock cut to the same figure.

200 mm Dia 200 mm round, 200 x 200 mm section 250 mm Dia 250 mm round, 250 x 250 mm section 350 mm Dia 350 mm round, 350 x 350 mm section 450 mm Dia 450 mm round, 450 x 450 mm section

Accessories

Optional

Tick what you need and it goes on the quote. These are quoted by the workshop against your spec and carry no discount.

Variable frequency drive Stepless blade speed instead of fixed pulley steps. Bar stand / roller table Infeed support for long stock. Length to suit your bay. Spare blade set Welded to your machine loop length. Grade and pitch to your material. Electric motor Not covered by the list price. Specify voltage and phase. Seaworthy packing Export crating and forwarding. Not covered by the list price.

Your machine

Model code

CE-BS-SH-250

250 mm , Manual

No accessories selected

Quantity

Quoted ex-works Rajkot. Electric motor, packing and forwarding, and GST are extra.

Ask a question

In the quote

Hinge frame and bow
Manual clamping vice
Coolant system
Commissioning support

Charged separately

Electric motor
Seaworthy packing and forwarding
GST
Extra accessories

Lead time

3 to 4 weeks from confirmed order

About the SH

A hinge frame with manual lifting and a manual clamping vice. The least to go wrong, the least to maintain, and the price to match. Right for a job shop cutting to order rather than running a batch.

Specification

Frame Hinge type

Lifting Manual

Clamping vice Manual

Feeding Operator fed

Round capacity Dia 250 mm

Section capacity 250 x 250 mm

Same range
